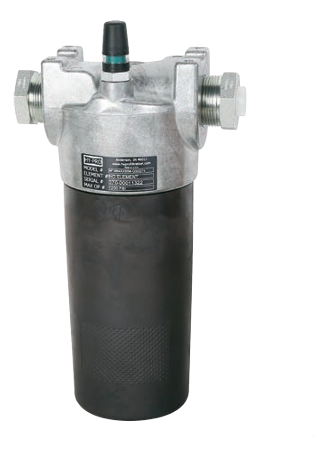

Purelube Filter Hsg, for 1:1, 3:1

Purelube Filter Housing Only

Purelube absolute discharge filters are designed to be installed on the discharge side of 1:1, 3:1, & 5:1 ratio pneumatic pumps and will handle working pressure up to 1,200 PSI with typical burst pressure of 3,000 PSI. A convenient visual indicator provides a warning when the filter element needs to be changed, a 45 PSI differential pressure will cause the indicator to show RED.

The filter head has a 2" NPTF threads and is fitted with 2"NPTM x 1/2" NPTF reducing bushings to allow use with typical oil dispensing systems. Filter elements are easily changed by unscrewing the canister from the filter head and replacing the element.

Replacement Filter Elements

• P/N 71250-03 - 3 Micron filter element (ISO Cleanliness ratings of 16/14/12)
• P/N 71250-06 - 6 Micron filter element (ISO Cleanliness ratings of 18/16/14)
• P/N 71250-12 - 12 Micron filter element (ISO Cleanliness ratings of 20/18/15)
• P/N 71250-25 - 25 Micron filter element (ISO Cleanliness ratings of 22/19/16)
